ID.TF8+
Made By: iddqd Audio:
Made to fit an 888 perfectly, but works for any 8 series mixer. Take control of ALL the channels.
Online user manual

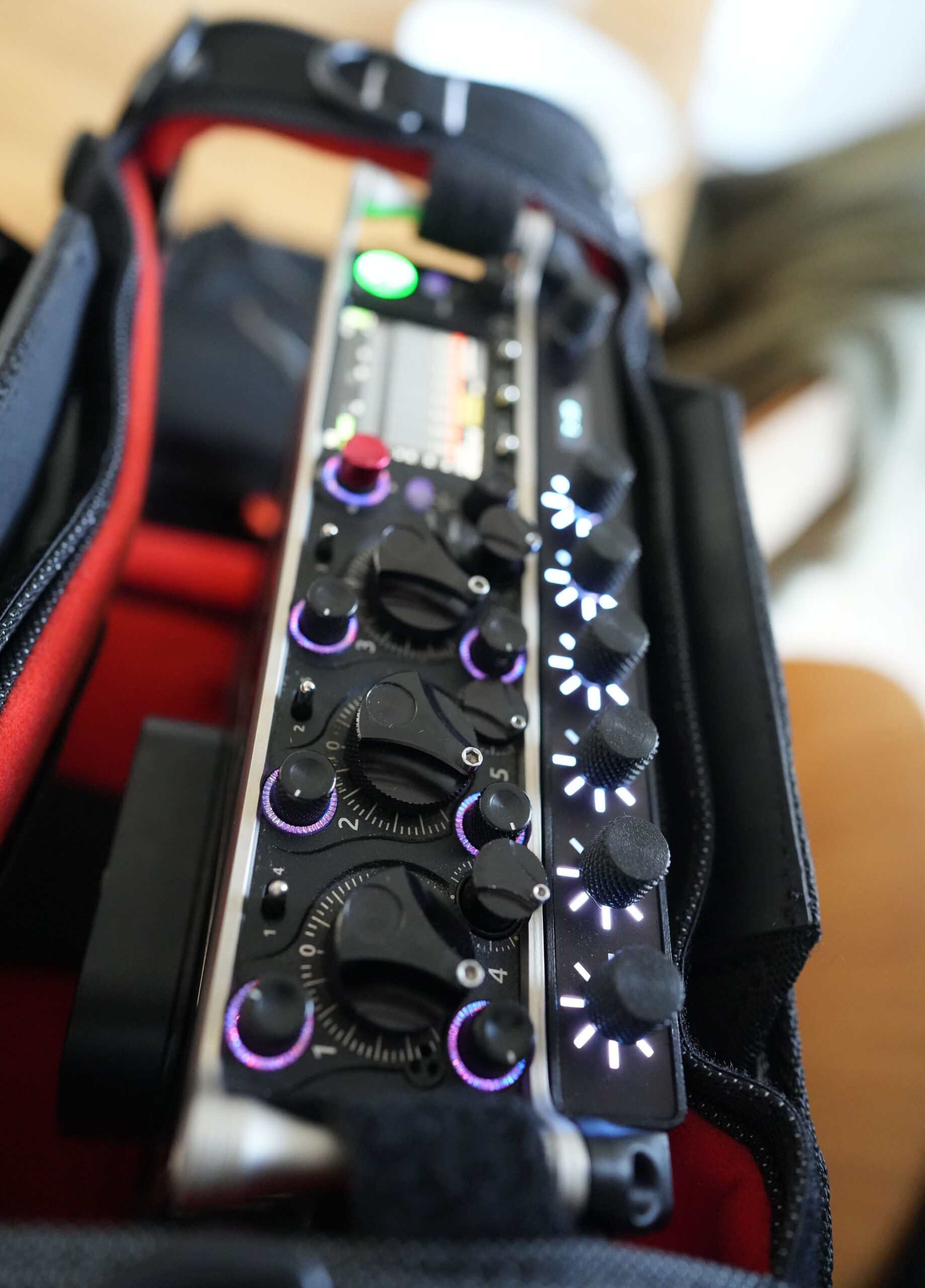

New version (TF8+) features ring LEDs for fader level indication and a menu display + some exciting and very useful features.
Description

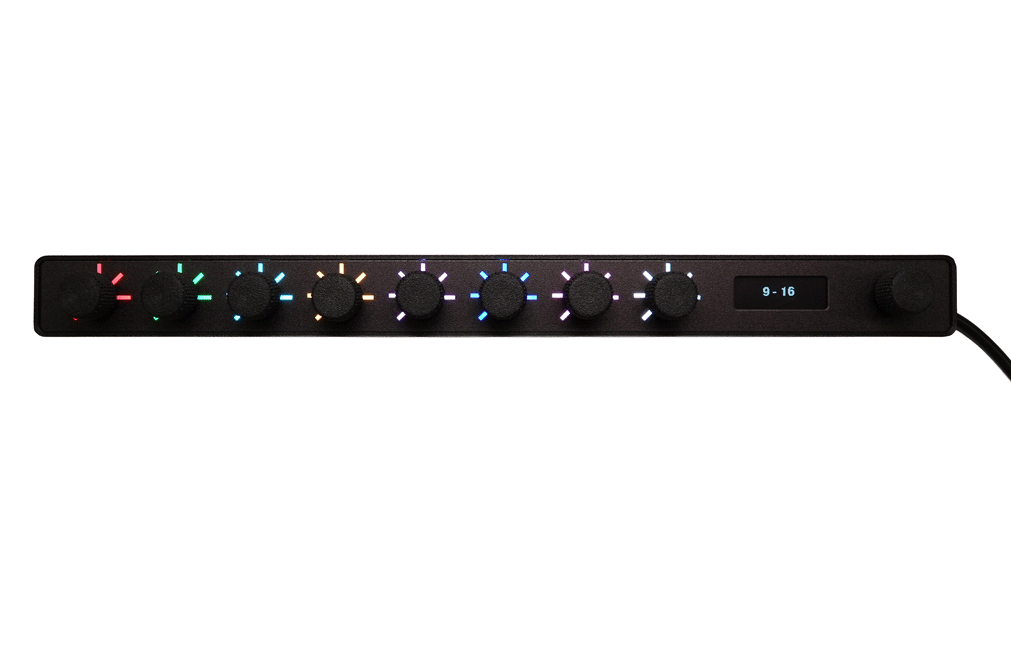

This is version 2 of the popular TF8 extension controller made to provide tactile control for channels 9-16 on a Sound Devices 888. This new version offers flexible control of any channel, master/bus/output fader + a bunch of other cool features. It works for both 833, 888, Scorpio. Please see the video demo.
9 high quality, non detent (smooth) endless encoders with selectable trim (gain) or volume fader functionality. Tailor made for 8-series recorders, designed and assembled by hand in Denmark. Please read the full description and FAQ below before you purchase. More pics and videos are on the way.
User manual:
- Plug and power via 8-series USB A. No setup required.
- Turn encoders to adjust channel volumes

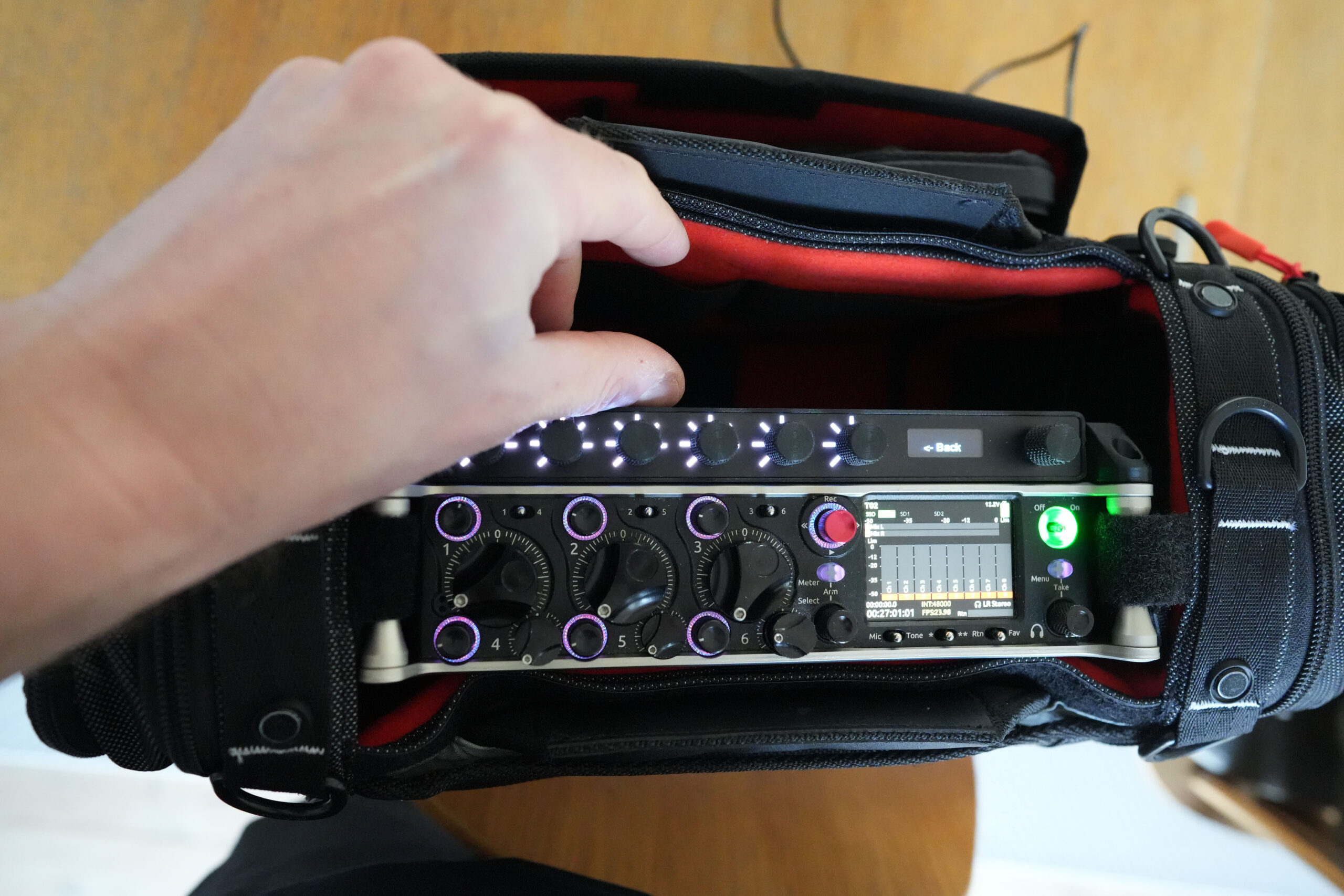

- Press an encoder to show channel page, trim available to adjust
- Press, hold and turn to trim, super fast workflow.
- Extensive customization of LED colors and behaviour
- 4 customizable fader modes

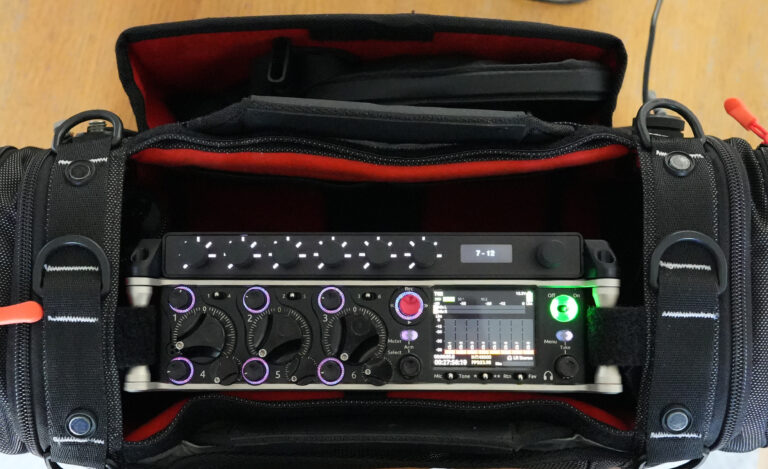

- Comes with a mounting solution to fit the 888 perfectly
- On screen PONG game
Dimensions, weight L x W x H
(tba)
PETG plastic
FAQ:
Can I change the channel configuration?
Yes! Version 3 has extensive customization options in the menu. Control any channel on any mixer you like. See the online user manual
What’s the build quality like?

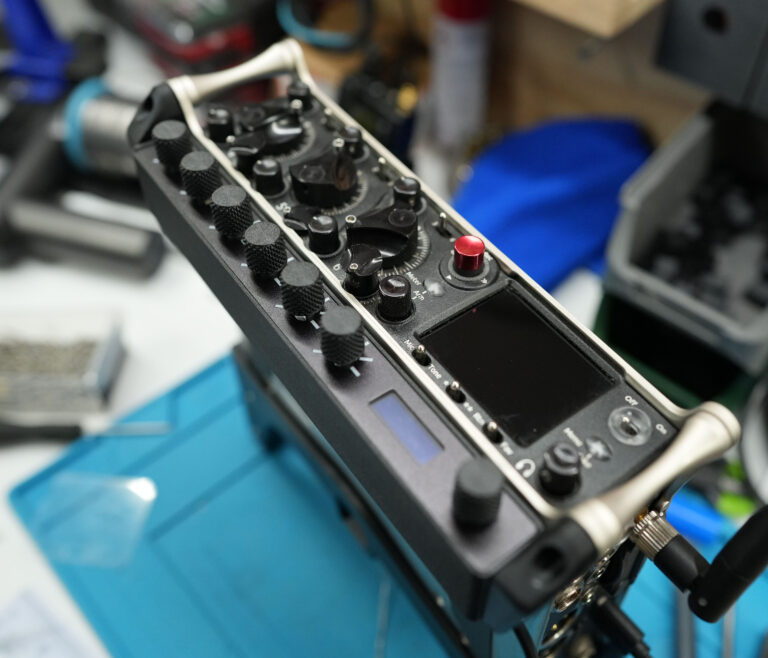

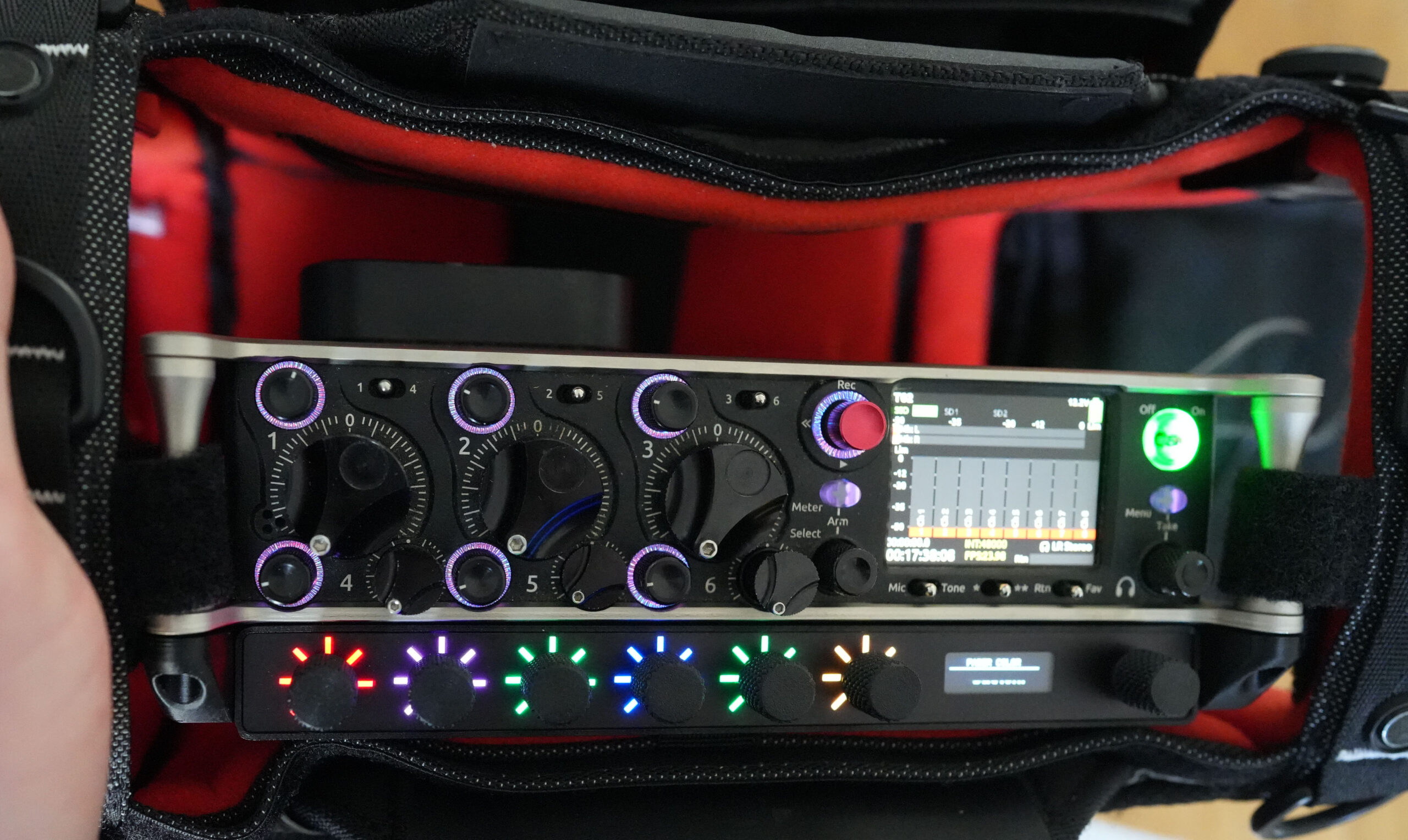

The electronics inside is a factory made custom embedded PCB design. Low EMI and power efficient, very proud of this one. The enclosure is manufactured by me with expertly fine tuned 3D printers using PETG material – durable, UV/heat resistant. I am pushing the technology to provide the best looking surface finish possible. This is not your regular 3D printed object. Take a look at the high res photos and decide for yourself (some of the images on this product page show the 833 version, but the concept and build is identical except the TF8+ has 9 knobs and is designed to fit an 888)
Will this work on my 6-series, 7-series, MixPre, Zoom recorder, etc ?
I am sorry – these units are only compatible – and specifically made for Sound Devices 8 series. You might be able to use it in your DAW though
What happens if I plug this into a 833 or Scorpio?
The controller is ready to control 888, 833 or Scorpio, just go to the menu and select your mixer model.
What about a 12 ch version for Scorpio?
If enough people commit to be on a list of people who will definitely buy one, I will consider making it. [email protected]
Can I use multiple USB controllers at a time?
Yes with a hub. Please consult the 8 series manual regarding third party controller spill / individual mode to determine if this will work with your use case.
How do I mount this thing?

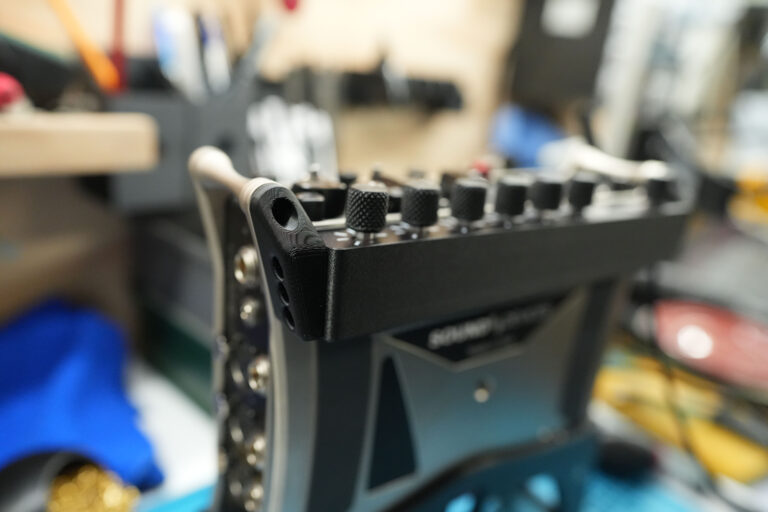

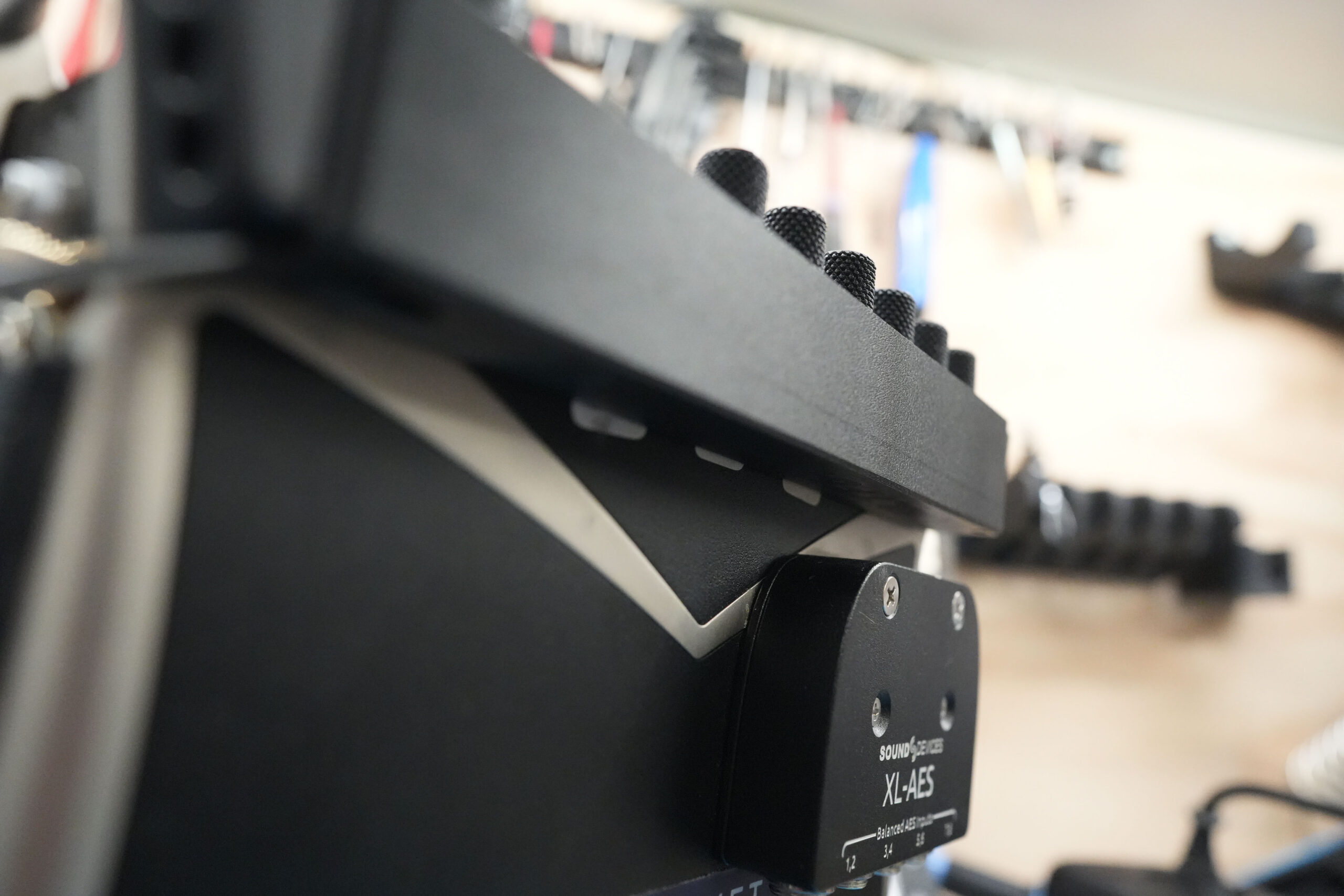

It comes with a pair of mounting brackets so you can attach the controller firmly directly to the 888
What if it breaks or stops working?
I am not running away if something breaks or stops working, please reach out to me if you run into any kind of issue: [email protected]
I’ve heard third party controllers will sometimes act up and even cause 8 series to freeze
This one will not
What’s the delivery time?
Preorder shipping late march
Shipping, customs, tariffs and all that:
Options are shown during checkout
